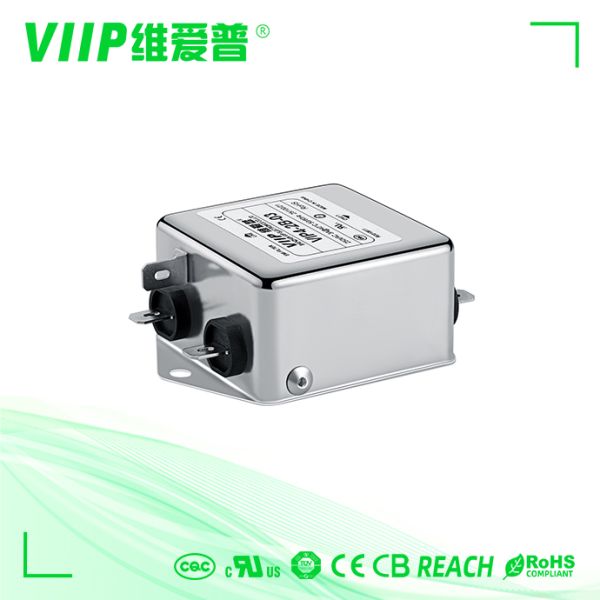

250VAC 40A Single Phase EMI Filter for Home Appliance Applications with AC Power Filtering

Name: 250VAC 40A Single Phase EMI Filter for Home Appliance Applications with AC Power Filtering
Brand: VIIP WeiAiPu
Price: 1 USD

Quality 250VAC 40A Single Phase EMI Filter for Home Appliance Applications with AC Power Filtering wholesale

Place of Origin : Guangdong, China

Brand Name : VIIP WeiAiPu

Model Number : VIP4-1A

Certification : TUV cUL CQC CE ROHS

MOQ : 1

Rated Voltage : 250V

Rated Current : 0.5A-300A

Test Voltage : 1450VDC/1Min

Climate Category : 25 / 085 / 21

Environmental Temperature : 40℃

Leakage Current : <0.5mA to <2.0mA

Attenuation Frequency : 150KHz-30MHz

Terminal Types : wire, solder lug, stud, terminal block

Screw Size : M4, M6, M8, M10

Weight Range : 65g to 1900g

Filter Type : Single Phase AC Filter

Electrical Schematic : Fig 1, Fig 2

Physical Dimensions : Refer to mechanical dimension images

Medical Version : Optional (H type)

High Voltage Option : Above 380VAC

Contact Now

250VAC 40A Single Phase EMI Filter for Home Appliance Applications with AC Power Filtering

Sample orders	Support
Certification	CQC、UL、VDE、CE
Current	0.1A-3000A For your choice
OEM	Support

Single phase emi filters .

features for single phase emi filters

1. Rated current: 0.5A-300A

2.Various terminals: wire, solder lug,stud, terminal block ,etc

3.Optional medical versions(H type)

4.Custom specific versions are available on request

General purpose AC filters with good attenuation frequency range 150KHz-30MHzCompact structure, high performance-cost ratio, easy to install,safe and reliable

VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen
different currentHigh voltage versions above 380VAC are also available

Part No.

Rated Current [A]

250VAC/50Hz @ 20C
Leakage Current [mA]

Physical Dimensions

Electrical Schematics

Terminals

Weight [g]

screw

terminal block

wires

VIP4-1A-01

<0.5mA

Fig 1

- - -

VIP4-1A-03

<0.5mA

Fig 1

- - -

VIP4-1A-06

<0.5mA

Fig 1

- - -

VIP4-1A-10

10A

<0.5mA

Fig 2

Fig 1

- - -

VIP4-1B-06

<1.0mA

Fig 3/Fig4

Fig 2

- - -

140

VIP4-1B-10

10A

<1.0mA

Fig 3/Fig4

Fig 2

- - -

170

VIP4-1B-20

20A

<1.0mA

Fig 3/Fig4

Fig 2

- - -

170

VIP4-1B-30

30A

<1.0mA

Fig 5

Fig 2

- - -

320

VIP4-1B-50

50A

<2.0mA

Fig 5

Fig 2

- - -

600

VIP4-1B-100

100A

<2.0mA

Fig 5

Fig 2

- - -

1380

VIP4-1B-150

150A

<2.0mA

Fig 5

Fig 2

M10

- - -

1900

VIP4-1B-200

200A

<2.0mA

Fig 5

Fig 2

M10

- - -

1900

Electrical schematic:

Mechanical Dimension(Unit: mm)

Features √Designed for IEC standard connectors, easy installation, high cost performance √Can be used in IT, communication equipment, instruments, household appliances, medical equipment, UPS, industrial air conditioning, electronic and electrical equipment, new energy equipment and electronic equipment √Customized and sample orders are available

For more power filter models click here to ask

Product Description

Company Profile

Our company anti-interference magnetic core production, the international advanced automatic magnetic material production testing line. EMI FERRITE CORE products a total of more than 300 kinds of specifications models to meet the needs of different products. All products are in line with ROHS,REACH environmental requirements. Most of the products are exported to Europe, America, Japan and South Korea, Southeast Asia and other countries and regions.

Exhibition

Certifications

Packing & Delivery

FAQ

Q: Can you provide some samples before ordering formally? A:Yes, samples can be provided. Q: How can I pay? A:T/T Q:Do you provide customized products? A:Yes, we can provide customized products. Q:Do you test all products before shipping? A:All the products will be 100% checked before the shipment.
